Ford Mondeo Auto High Beam

The Ford Mondeo / Ford Fusion automatic high beam system automatically switches on the high beams only if it is dark enough and no other traffic is present. The system will revert from high beam to low beam if it detects an approaching vehicle’s headlights or tail lights, or street lighting up ahead.

The system works by continuously monitoring the road ahead by use of a camera centrally mounted behind the windscreen of the vehicle. When auto high beam is activated, high beams will switch on:

  • only if it’s dark enough to benefit from the use of high beams
  • if there’s no traffic or street lighting that can be detected
  • if the vehicle speed is greater than 25 mph (40 km/h)

Automatic high beams will switch off if:

  • there is an ambient light increase and is deemed high enough to not require high beams
  • an approaching vehicle’s headlights or tail lights are detected
  • street lighting is detected

Activating Automatic High Beam

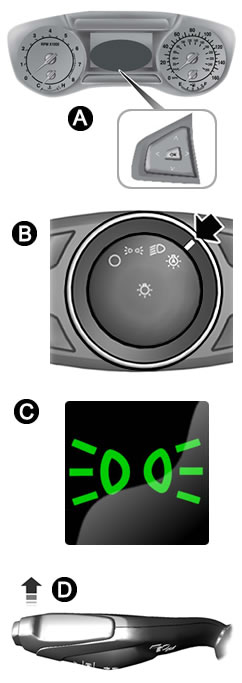

  1. Switch on automatic high beams by accessing the information display Button A. Using the navigation buttons on the steering wheel, on the menu, go to settings  – Auto High beam – check enabled or uncheck disabled.
  2. Using the lights switch, turn it to the automatic high beam position Button B.
  3. You’ll receive an illuminated symbol Button C indicating that the system is active and ready to use.
  4. When necessary, manual override of the system is required. To do this, push or pull the lever to switch between
    high and low beam D. This manual override is temporary and the system will return to automatic operation shortly after.
  5. To turn off automatic high beams, either enter the information display Button A to uncheck the option, or turn the lighting control switch Button B to the headlamps position.
Ford Mondeo / Ford Fusion automatic high beams
Activating the Ford Mondeo automatic high beams

Ford Mondeo Auto High Beam Limitations and Warnings

There are certain situations where the system may not switch from high beam to low beam. In this circumstance, you will need to manually override the system to switch off high beams to low. For example, a manual override may be required when approaching cyclists.

Certain weather conditions may cause the system not to function correctly. Avoid using the system in fog. In severe weather conditions such as when it’s very cold, the system may fail to function.

Other instances where the  system fails to deactivate high beams are if the lights of oncoming vehicles are hidden by obstacles such as trees or fences.

Basic maintenance is required for keeping the system in optimal condition. Keep the windscreen clean and free from obstructions that prevent the camera from optimal view. these include bird droppings, insects, snow and ice. To ensure the camera sensor has a clear view and that the windscreen is kept clear during rain, replace wiper blades regularly ensuring the correct length and type are used.

There may be instances where reflective road signs are mistaken by the camera sensor for oncoming vehicles. The system may switch from high to low beams.

Automatic High Beam Faults

The information display will alert you when there are operating issues that require maintenance or system faults. The information messages are as follows:

Front Camera Low Visibility -
Clean Screen
The front camera sensor has reduced visibility. Clean the
Front Camera Malfunction -
Service Required
The system requires service due to a malfunction. Contact
an authorised dealer.
Front Camera Temporarily -
Not Available
The front camera sensor has malfunctioned. Wait a short
period of time for the sensor to cool down.
